ENGINE AND FUEL ECONOMY HIGHLIGHTS
Engine Type | Twin-Turbocharged 3.5L V6 with Auto Start-Stop Technology |
All standard features of Navigator, plus:
*Lincoln BlueCruise requires a Connected Service plan that provides regular map updates, Lincoln Way® App, and modem activation. Lincoln BlueCruise-equipped vehicles come with either a 90-day trial or a 2 or 4-year BlueCruise Connected Service plan, after which purchase is required. See your retailer to confirm BlueCruise Connected Service plan options for your vehicle. Owners, see the Connected Services section of your Lincoln Account for your BlueCruise Connected Service plan status.
Driver-assist features are supplemental and do not replace the driver’s attention, judgment and need to control the vehicle. Lincoln BlueCruise is a hands-free highway driving feature. Only remove hands from the steering wheel when in a Hands-Free Blue Zone. Always watch the road and be prepared to resume control of the vehicle. It does not replace safe driving. See Owner’s Manual for details and limitations.
Engine Type | Twin-Turbocharged 3.5L V6 with Auto Start-Stop Technology |
Max Seating Capacity | 8 |
Drive Type | 4X4 - Standard |
Transmissions | 10-Speed SelectShift® Automatic Transmission with paddle activation |
Wheelbase | 4X4 Navigator - 122.5 in. |
4X4 Navigator L - 131.6 in. | |
Maximum Towing Capacity | 4X4 Navigator - 8,300 lbs. |
4X4 Navigator L - 8,100 lbs. | |
Wheels Available | 20-inch 12-Spoke Bright-Machined Aluminum Wheel with Painted Pockets |
22-inch Bright-Machined Aluminum Wheel with Premium Painted Pockets | |
22-inch 12-Spoke Bright-Machined Aluminum Wheel with Ebony Black Painted Pockets | |
22-inch Black Aluminum | |
22-inch Bright-Machined Aluminum Wheel with Ebony Black Painted Pockets | |
Warranty | Bumper to Bumper: 4 years / 50,000 miles |
Powertrain: 6 years / 70,000 miles | |
Safety Restraint System: 5 years / 60,000 miles | |
Corrosion (Perforation only): 5 years / Unlimited miles | |
Roadside Assistance Program: 6 years / 70,000 miles |

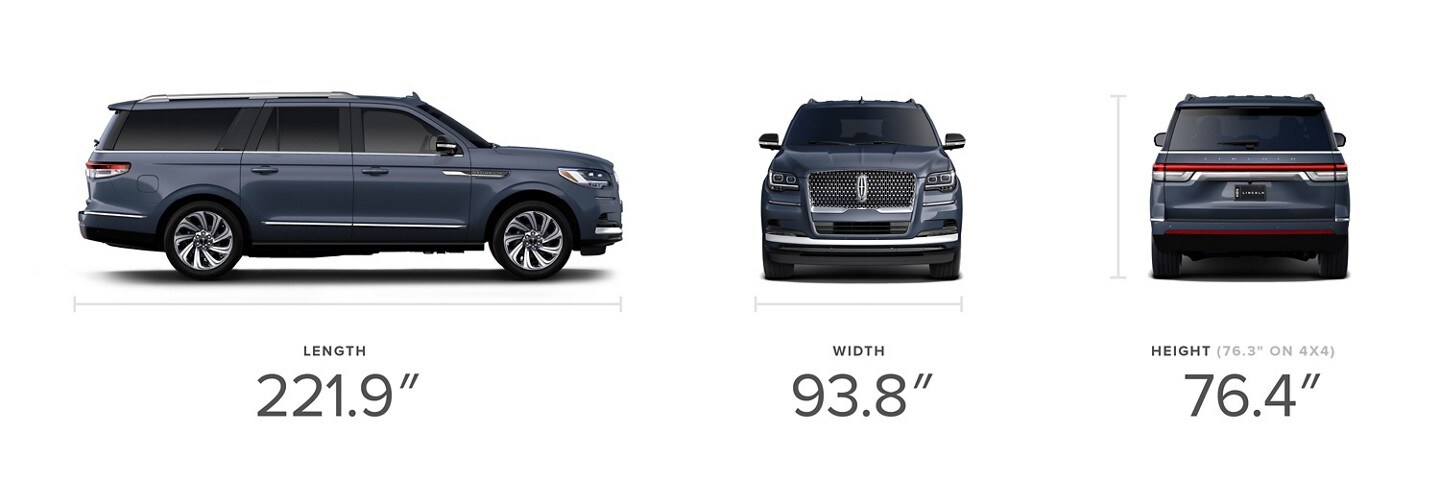

Exterior Dimensions | ||
---|---|---|
Navigator 4X4 | Navigator L 4x4 | |
Wheelbase (in.) | 122.5 | 131.6 |
Length (in.) | 210.0 | 221.9 |
Height (in.) | 76.3 | 76.1 |
Width - Excluding mirrors (in.) | 79.9 | 79.9 |
Width - Including mirrors (in.) | 93.8 | 93.8 |
Width - Mirrors Folded (in.) | 83.6 | 83.6 |
Front Track (in.) | 67.6 | 67.6 |
Rear Track (in.) | 67.2 | 67.2 |
Front Overhang (in.) | 38.2 | 38.2 |
Rear Overhang (in.) | 49.3 | 52.1 |
Approach Angle (degrees) | 22.2 | 22.4 |
Departure Angle (degrees) | 21.9 | 20.7 |
Ramp Breakover Angle (degrees) | 21.1 | 19.8 |
Minimum Running Ground Clearance | 9.6 | 9.6 |
Interior Dimensions | ||
---|---|---|
Navigator 4x4 | Navigator L 4x4 | |
Head Room - first row (in.) | 41.8 | 41.8 |
Head Room - second row (in.) | 40.0 | 40.0 |
Head Room - third row (in.) | 37.3 | 37.4 |
Maximum Leg Room - first row (in.) | 43.9 | 43.9 |
Leg Room - second row (in.) | 41.1 | 41.1 |
Leg Room - second row (in.) (seat full rearward) | 42.3 | 42.3 |
Leg Room - third row (in.) | 36.1 | 36.1 |
Leg Room - third row (in.) (second-row seat full forward) | 40.9 | 40.9 |
Hip Room - first row (in.) | 61.9 | 61.9 |
Hip Room - second row (in.) | 61.6 | 61.6 |
Hip Room - third row (in.) | 51.4 | 51.4 |
Shoulder Room - first row (in.) | 65.2 | 65.2 |
Shoulder Room - second row (in.) | 65.1 | 65.1 |
Shoulder Room - third row (in.) | 64.2 | 64.3 |
Capacities | ||
---|---|---|
Navigator 4X4 | Navigator L 4X4 | |
Standard Seating Capacity | 7 | 7 |
Maximum Seating Capacity | 8 | 8 |
Passenger Volume (cu.-ft.) | 172.0 | 172.1 |
Cargo Volume behind first row (cu.-ft.) | 103.3 | 120.2 |
Cargo Volume behind second row (cu.-ft.) | 57.5 | 73.3 |
Cargo Volume behind second row (cu.-ft.) (second-row seat full forward) | 63.6 | 79.6 |
Cargo Volume behind third row (cu.-ft.) | 19.3 | 34.3 |
Cargo Volume behind third row (cu.-ft.) (third-row seat full upright) | 20.9 | 36.0 |
Fuel Capacity (gallons) | 23.0 | 27.0 |
Base Curb Weight (lbs.) | 5,855 | 6,056 |
Engine Specifications | ||
---|---|---|
Navigator | Navigator L | |
Engine type | Twin-Turbocharged 3.5L V6 with Auto Start-Stop Technology | Twin-Turbocharged 3.5L V6 with Auto Start-Stop Technology |
Transaxle type | 10-Speed SelectShift® Automatic Transmission with paddle activation | 10-Speed SelectShift® Automatic Transmission with paddle activation |
Horsepower (SAE net @ rpm) | 440 @ 5,850 rpm* | 440 @ 5,850 rpm* |
Torque (lb.-ft. SAE net @ rpm) | 510 lb.-ft. @ 3,000 rpm* | 510 lb.-ft. @ 3,000 rpm* |
Fuel Delivery | Direct injection | Direct injection |
Compression Ratio | 10.5:1 | 10.5:1 |
Exhaust | Dual | Dual |
Brakes | 4-Wheel Disc | 4-Wheel Disc |
Drive | 4X4 Standard | 4X4 Standard |
*Horsepower and torque ratings based on premium fuel per SAE J1349® standard. Your results may vary. Horsepower and torque are independent attributes and may not be achieved simultaneously. |
Chassis Specifications | ||
---|---|---|
Navigator | Navigator L | |
Front Suspension | Independent Short- and Long-Arm (SLA) with coil-over semi-active shocks and stabilizer bar | Independent Short- and Long-Arm (SLA) with coil-over semi-active shocks and stabilizer bar |
Rear Suspension | Independent Multi-Link with coil-over semi-active shocks and stabilizer bar | Independent Multi-Link with coil-over semi-active shocks and stabilizer bar |
Front and Rear Brakes | Power Four-Wheel Disc Anti-lock Brake System (ABS) | Power Four-Wheel Disc Anti-lock Brake System (ABS) |
Vehicle Control | AdvanceTrac® with Roll Stability Control™ and Hill Descent Control | AdvanceTrac® with Roll Stability Control™ and Hill Descent Control |
Steering | Electric Power-Assisted Steering (EPAS) | Electric Power-Assisted Steering (EPAS) |
Towing | ||
---|---|---|
Navigator 4X4 | Navigator L 4X4 | |
Maximum towing capacity* | 8,300 | 8,100 |
*When properly equipped. |
