Lincoln Navigator^® Reserve

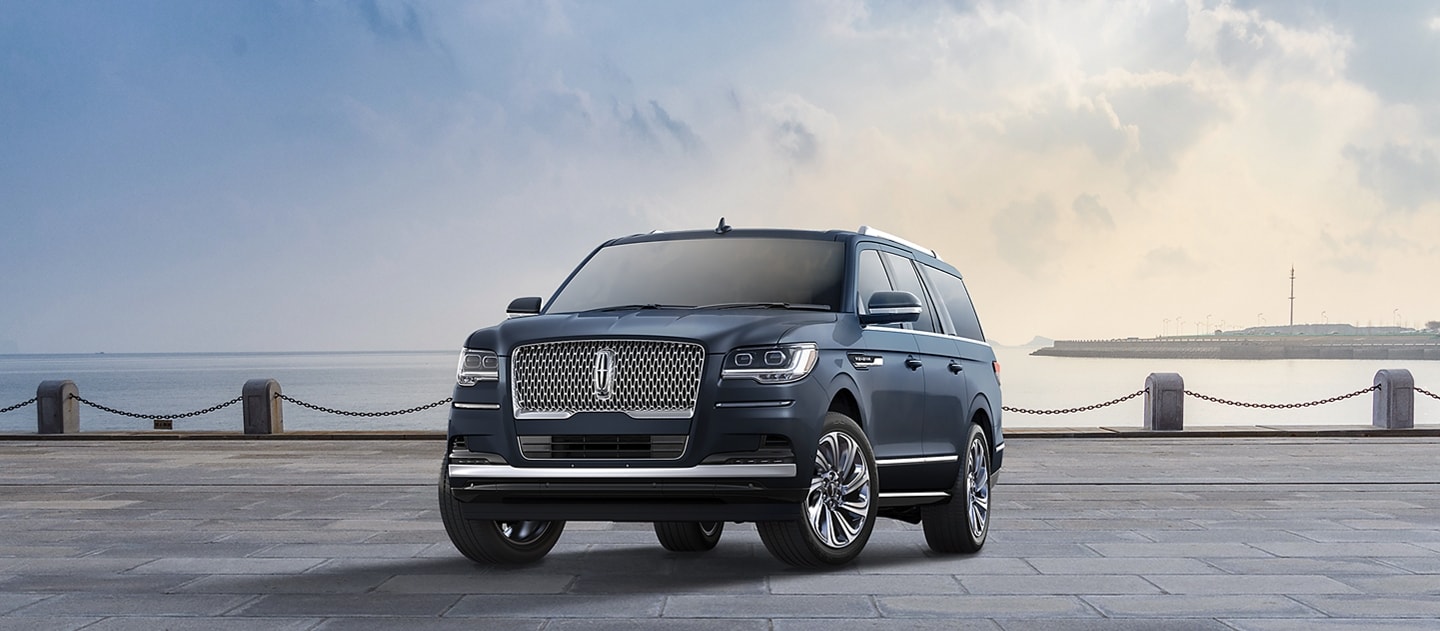

2025 Lincoln Navigator® Reserve model
In
¹ 2025 Lincoln Navigator® Payment Estimator details
Seating for

7/8
2025 Lincoln Navigator® Payment Estimator details
Specifications

Dimensions
Features
Specifications

Vehicle Dimensions

Compare models

An impressive exterior opens the door to a roomy interior.

Navigator Reserve

Build & Price

Use our helpful tool to build the Lincoln Navigator® SUV that meets your needs and sense of style.

Get started

Feature Highlights

Browse the top features for the Lincoln Navigator® Reserve model or view all standard and available features below.

Media & Connectivity

Lincoln Digital Experience

...less

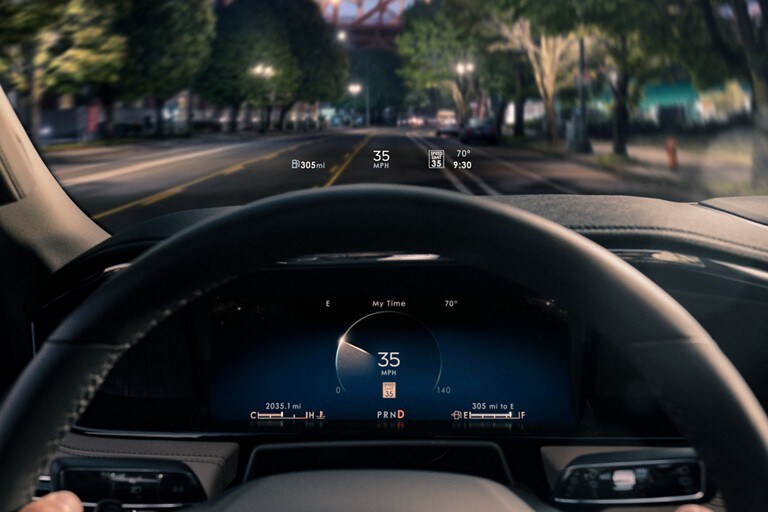

Panoramic display

...less
5G modem

...less
Revel® Ultima 3D Audio System

...less

Lincoln Rejuvenate

...less
Available Second Row Power Tailored Seats

...less
Lincoln Split Gate

...less
Digital Scent

...less
Perfect Position front seats

...less
Personal profiles

...less

All-new design

...less
Available 24-inch wheel

...less
Auto High-Beam Headlamps

...less
Long wheelbase

...less

Tiered Cargo Area Management System

...less
Third-row seats

...less
Enhanced Ambient Lighting

...less
Wireless charging pad

...less

Turn Signal Views

...less
Lincoln BlueCruise

...less
In-Lane Repositioning

...less
Lane Change Assist

...less

Phone As A Key

...less
Lincoln Embrace

...less

Available Heavy-Duty Trailer Tow Package

...less
Google towing routes

...less
Additional towing help

...less

Accessories

Driver Assist

Standard

Adaptive Cruise Control with Stop-and-Go, Lane Centering Assist and Predictive Speed Assist

Blind Spot Information System with Cross-Traffic Alert and Trailer Coverage

Evasive Steering Assist

Front/Rear Parking Sensors

Hill Descent Control™

Hill Start Assist

Intersection Assist

Lane Keeping System Includes Lane Keeping Aid, Lane Keeping Alert, Driver Alert System and Road Edge Detection

Lincoln BlueCruise¹²⁷

Lincoln Co-Pilot360™ 2.0 Drive

Reverse Brake Assist

Adaptive Suspension

Auto Hold

360-Degree Camera

Pre-Collision Assist with Automatic Emergency Braking Includes Pedestrian Detection, Forward Collision Warning and Dynamic Brake Support

Post Collision Braking

Exterior Features

Standard

Body-Colored Bumpers

Body-Colored Rear Spoiler

Daytime Running Lights - LED

Doors Handles with Black Insert

Satin Aluminum Beltline Molding

Satin Aluminum Grille Surround with Satin Chrome Open Jewels

Satin Aluminum Roof Rack Side Rails

Tail Lamps, Rear Applique and Backup Lamps - LED

Lincoln Split Gate

Pro-Trailer Backup Assist™

Trailer Reverse Guidance

18-inch Spare Wheel

22-inch Dark Tarnished Aluminum Wheel with Bright-Machined Finish

Optional

Illuminated Lincoln Star in Grille

Trailer Brake Controller

Two-Speed Transfer Case (Includes Slow Climb Drive Mode)

24-inch Luster Nickel Aluminum Wheel with Bright-Machined Finish

Interior Features

Standard

110V/400W AC Power Outlet

Carpeted 1st- and 2nd-Row Floor Mats

Coat Hooks - (2) 2nd-Row, (2) 3rd-Row

Front Center Console with Winged Armrests and Storage

Genuine Wood Accents

Glove compartment - lockable

Illuminated Front Door-Sill Scuff Plates

Power Windows with One-Touch-Up/down and Global Open Feature

Power Door Locks with Autolock

Power-Adjustable Pedals with Personal Profile Memory

Powerpoints - Smart charging USB ports in each row and (2) in cargo area

Rear Window Defroster with Hidden Intermittent Wiper/washer

Illuminated Front Door-Sill Scuff Plates

2nd-Row PowerFold® Captain Chairs - 40/Pass-Through/40 seating

3rd-Row 40/20/40 Powerfold® Split Bench Seat with Power Recline

Driver's Seat with Personal Profile Memory

Heated 2nd-Row Seats

Heated and Ventilated Front Seats

Leather Seating Surfaces For 1st- and 2nd-Row Seats

Lincoln Soft Touch 3rd-Row Seats

Perfect Position 24-Way Driver's Seat and 22-Way Front Passenger Seat

Optional

All - Weather Floor Liners - 1st- and 2nd-rows

2nd-Row PowerFold® Captain Chair with Power Tailored Seats - 40/Console/40 seating

2nd-Row Powerfold® Heated Outboard 40/20/40 Split Bench with Tilt and Slide Functionality

Heated and Ventilated 2nd-Row Seats

Luxury & Convenience

Standard

Adaptive Pixel Projector Headlamps with Dynamic Bending

Ambient Lighting

Auto High-Beam Headlamps

Lincoln Embrace

Power Split Gate

Power-Adjustable, Autofold, Heated Sideview Mirrors with Integrated LED Turn Signals Indicators, Memory and Driver's Side Auto-Dimming Feature

Power-Deployable Running Boards

Electromechanical Climate Front Vents

Tri-Zone Electronic Automatic Temperature Control with Rear Auxiliary Climate Controls and Vents

Auto Air Refresh

Digital Scent

Enhanced Active Noise Control

Frameless, Auto-Dimming Rearview Mirror

Front Visors with Illuminated Vanity Mirrors

Heated Steering Wheel

Leather-Wrapped Steering Wheel

Lincoln Rejuvenate

Overhead Console with Sunglasses Holder

Personal Profiles - Memory Setting

Piano Key Shifter

Power Tilt/Telescoping Steering Column with Personal Profile Memory

Rain-Sensing Front Wipers

Remote Start

Symphonic Chimes

Universal Garage Door Opener

Lincoln Drive Modes

Easy Fuel® Capless Fuel Filler

Acoustic Laminated Side Door Glass

Panoramic Vista Roof®

Privacy Glass For Rear Door, Quarter and Split Gate Windows

Media & Technology

Standard

48" Panoramic Display

48-Inch Display with Configurable Instrument Cluster and Selectable Themes

5.8-inch LCD Touchscreen with Multi-Media Controls at Rear of Front Floor Console

Lincoln Connect™ Embedded Modem with 5G LTE Wi-Fi Hotspot Capability

Lincoln Premium Connectivity

Wireless Charging Pad For 1st-Row

11.1-inch LCD Center Touchscreen Display

Google Maps

Lincoln Digital Experience

Lincoln Way® App

Revel® Ultima 3D Audio System with HD Radio™ Technology and 28 Speakers

SiriusXM^® with 360L (3-Month Trial Subscription Included)

Optional

5.8-inch LCD Touchscreen with Multi-Media Controls on 2nd-Row Floor Console

Packages

Safety

Standard

Belt-Minder® For Seating Positions

Child-Safety Rear Door Locks

Crash Severity Sensor - Front

Dual-Stage Front Airbags

Four-Wheel Disc Anti-Lock Brake System (ABS)

LATCH (Lower Anchors and Tether Anchors for Children)

Personal Safety System™

SOS Post-Crash Alert System™

Safety Canopy® Side Curtain Airbags with Roll-Over Sensor

Side Impact Airbags - 1st-Row Seats

Tire Pressure Monitoring System (excludes Spare)

Traction Control

Smart Entry & Security

Standard

Intelligent Access with Push-Button Start

Phone As A Key

Electric Parking Brake

Enhanced Security System - Perimeter Alarm, Passive Anti-Theft System and Valet Mode

Remote Keyless Entry System

SecuriCode™ Keyless Entry Keypad

Warranty

Specification Highlights

Navigator Reserve

Max Seating Capacity

Warranty (Bumper to Bumper)*

4 yr/50k mi

Torque* (lb.-ft. @ rpm)

510 @ 3,300

Drive Type

4x4

Wheelbase

122.5 in

Horsepower*

440 @ 5,400

Maximum Towing Capacity*

8,700 lbs**

Cargo Capacity*

107 cu. ft.

Max Seating Capacity

Warranty (Bumper to Bumper)*

4 yr/50k mi

Torque* (lb.-ft. @ rpm)

510 @ 3,300

Drive Type

4x4

Wheelbase

122.5 in

Horsepower*

440 @ 5,400

Maximum Towing Capacity*

8,700 lbs**

Cargo Capacity*

107 cu. ft.

Max Seating Capacity

Warranty (Bumper to Bumper)*

4 yr/50k mi

Torque* (lb.-ft. @ rpm)

510 @ 3,300

Drive Type

4x4

Wheelbase

131.5 in

Horsepower*

440 @ 5,400

Maximum Towing Capacity*

8,700 lbs**

Cargo Capacity*

121.6 cu. ft.

Max Seating Capacity

Warranty (Bumper to Bumper)*

4 yr/50k mi

Torque* (lb.-ft. @ rpm)

510 @ 3,300

Drive Type

4x4

Wheelbase

131.5 in

Horsepower*

440 @ 5,400

Maximum Towing Capacity*

8,700 lbs**

Cargo Capacity*

121.6 cu. ft.

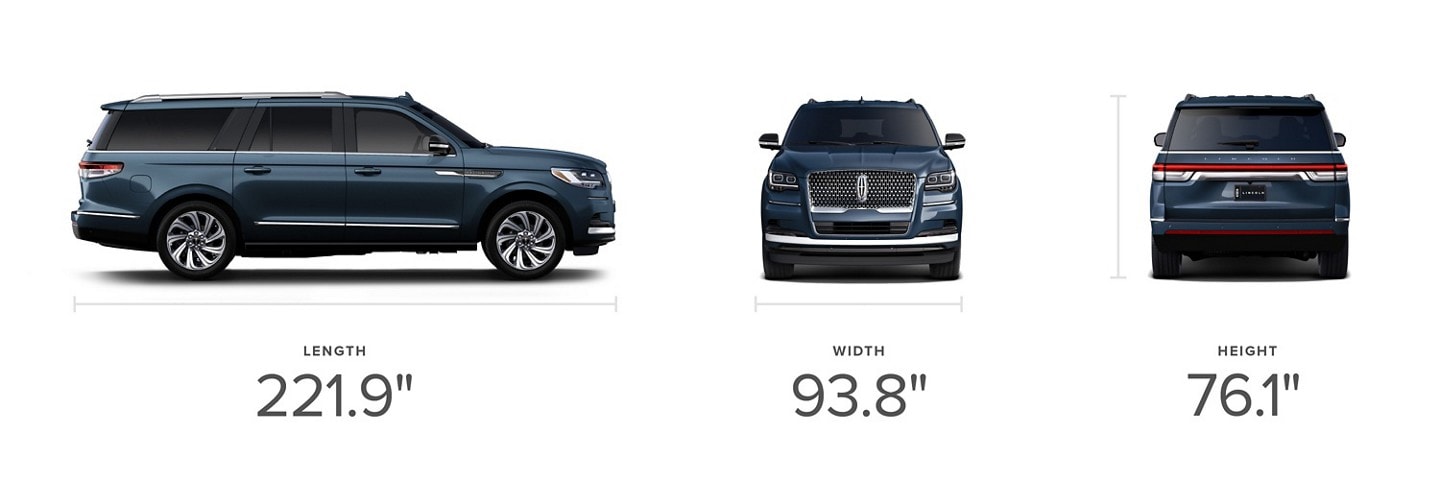

Exterior Dimensions

Navigator 4X4

Navigator L 4x4

Wheelbase (in.)

122.5

131.5

Length (in.)

210.0

221.9

Height (in.)

78.0

Width - Excluding mirrors (in.)

80.0

Width - Including mirrors (in.)

94.6

Width - Mirrors Folded (in.)

84.6

Front Track (in.)

68.1

Rear Track (in.)

67.8

Front Overhang (in.)

38.2

Rear Overhang (in.)

49.3

52.1

Approach Angle (degrees)

19.3

19.5

Departure Angle (degrees)

23.1

22.2

Ramp Breakover Angle (degrees)

19.4

17.5

Minimum Running Ground Clearance

8.9

Interior Dimensions

Navigator 4x4

Navigator L 4x4

Head Room - first row (in.)

38.3

Head Room - second row (in.)

37.9

Head Room - third row (in.)

37.4

Maximum Leg Room - first row (in.)

43.5

Leg Room - second row (in.)

40.9

Leg Room - second row (in.) (seat full rearward)

42.0

Leg Room - third row (in.)

36.5

Leg Room - third row (in.) (second-row seat full forward)

43.5

Hip Room - first row (in.)

61.9

Hip Room - second row (in.)

61.7

Hip Room - third row (in.)

51.4

Shoulder Room - first row (in.)

65.3

Shoulder Room - second row (in.)

65.1

Shoulder Room - third row (in.)

64.2

64.3

Capacities

Navigator 4X4

Navigator L 4X4

Standard Seating Capacity

Maximum Seating Capacity

Passenger Volume (cu.-ft.)

172.1

Cargo Volume behind first row (cu.-ft.)

107.0

121.6

Cargo Volume behind second row (cu.-ft.)

60.8

75.4

Cargo Volume behind second row (cu.-ft.) (second-row seat full forward)

69.9

84.5

Cargo Volume behind third row (cu.-ft.)

21.6

36.1

Cargo Volume behind third row (cu.-ft.) (third-row seat full upright)

22.9

37.4

Fuel Capacity (gallons)

23.0

27.0

Base Curb Weight (lbs.)

5,936

6,051

Maximum Towing Capacity*

8,700

Maximum Towing Capacity* (with 24-inch wheels)

8,500

8,400

*When properly equipped.

Powertrain

Navigator 4X4

Navigator L 4X4

Engine type

Twin-Turbocharged 3.5L V6 with Auto Start-Stop Technology

Transmission

10-Speed SelectShift® Automatic Transmission with paddle activation

Horsepower (SAE net @ rpm)

440 @ 5,400 rpm *

Torque (lb.-ft. SAE net @ rpm)

510 lb.-ft. @ 3,300 rpm *

Fuel Delivery

Direct injection

Compression Ratio

10.5:1

Exhaust System

Dual

Brakes (ABS)

4-Wheel Disc

Drive

4X4 Standard

Rear Axle Ratio

3.73 (Non-Limited Slip)

*Horsepower and torque ratings based on premium fuel per SAE J1349® standard. Your results may vary. Horsepower and torque are independent attributes and may not be achieved simultaneously.

Chassis specifications

Navigator 4X4

Navigator L 4X4

Front Suspension

Independent Short- and Long-Arm (SLA) with coil-over semi-active shocks and stabilizer bar

Rear Suspension

Independent Multi-Link with coil-over semi-active shocks and stabilizer bar

Suspension

Adaptive Suspension

Front and Rear Brakes

Power Four-Wheel Disc Anti-lock Brake System (ABS)

Vehicle Control

AdvanceTrac® with Roll Stability Control™and Hill Descent Control

Steering

Electric Power-Assisted Steering (EPAS)

Towing

An image of a 2025 Lincoln Navigator® SUV with clickable hot spots with more feature information

Build & Price

Our Build & Price tool lets you select your model, equip it to your liking, and take a 360-Degree tour of what you have created, inside and out.

Search inventory

Peruse available vehicles at Lincoln Retailers across the country or just down the road.

Request a quote

See pricing from your local retailer.

MORE SHOPPING TOOLS

PURCHASE TOOLS

LINCOLN BENEFITS

TOP SUPPORT TOPICS

Lincoln Navigator® Reserve

2025 Lincoln Navigator® Reserve model

Vehicle Dimensions

Build & Price

Feature Highlights

Lincoln Digital Experience

Panoramic display

5G modem

Revel® Ultima 3D Audio System

Lincoln Rejuvenate

Available Second Row Power Tailored Seats

Lincoln Split Gate

Digital Scent

Perfect Position front seats

Personal profiles

All-new design

Available 24-inch wheel

Auto High-Beam Headlamps

Long wheelbase

Tiered Cargo Area Management System

Third-row seats

Enhanced Ambient Lighting

Wireless charging pad

Turn Signal Views

Lincoln BlueCruise

In-Lane Repositioning

Lane Change Assist

Phone As A Key

Lincoln Embrace

Available Heavy-Duty Trailer Tow Package

Google towing routes

Additional towing help

Accessories

Front License Plate Bracket (included in States That Require Front License Plates)

Driver Assist

Adaptive Cruise Control with Stop-and-Go, Lane Centering Assist and Predictive Speed Assist

Blind Spot Information System with Cross-Traffic Alert and Trailer Coverage

Evasive Steering Assist

Front/Rear Parking Sensors

Hill Descent Control™

Hill Start Assist

Intersection Assist

Lane Keeping System Includes Lane Keeping Aid, Lane Keeping Alert, Driver Alert System and Road Edge Detection

Lincoln BlueCruise127

Lincoln Co-Pilot360™ 2.0 Drive

Reverse Brake Assist

Adaptive Suspension

Auto Hold

360-Degree Camera

Pre-Collision Assist with Automatic Emergency Braking Includes Pedestrian Detection, Forward Collision Warning and Dynamic Brake Support

Post Collision Braking

Exterior Features

Body-Colored Bumpers

Body-Colored Rear Spoiler

Daytime Running Lights - LED

Doors Handles with Black Insert

Satin Aluminum Beltline Molding

Satin Aluminum Grille Surround with Satin Chrome Open Jewels

Satin Aluminum Roof Rack Side Rails

Tail Lamps, Rear Applique and Backup Lamps - LED

Lincoln Split Gate

Pro-Trailer Backup Assist™

Trailer Reverse Guidance

18-inch Spare Wheel

22-inch Dark Tarnished Aluminum Wheel with Bright-Machined Finish

Illuminated Lincoln Star in Grille

Trailer Brake Controller

Two-Speed Transfer Case (Includes Slow Climb Drive Mode)

24-inch Luster Nickel Aluminum Wheel with Bright-Machined Finish

Interior Features

110V/400W AC Power Outlet

Carpeted 1st- and 2nd-Row Floor Mats

Coat Hooks - (2) 2nd-Row, (2) 3rd-Row

Front Center Console with Winged Armrests and Storage

Genuine Wood Accents

Glove compartment - lockable

Lincoln Navigator^® Reserve

Lincoln BlueCruise¹²⁷

SiriusXM^® with 360L (3-Month Trial Subscription Included)
